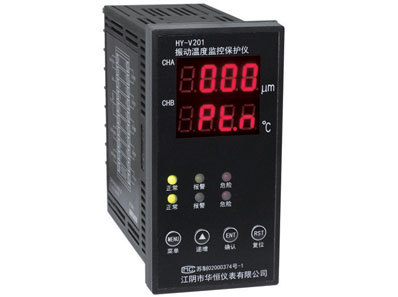

HY-V201vibration temperature combination monitor With VS-201 vibration temperature combination sensor, the instrument continuously monitors and measures the bearing vibration and bearing temperature of various rotating machinery, which is convenient for users to analyze and maintain the working condition of the machine. Mainly used in electric power, steel, metallurgy, chemical industry and other fields.
- Measuring range: Amplitude: 0 ~ 500μm (peak-peak)
Intensity: 0 ~ 50mm/s (valid value)
Temperature: -100 ~ 400.0℃
- Input signal: VS-201 vibration temperature sensor;
- Measurement accuracy: 0.5, linear error ≤±0.5%;
- Display mode: LED display
- Signal output: Current output: 4 ~ 20mA, load resistance ≤850Ω;
Switching output: DC 27V/2A or AC250V/5A;
- Ambient temperature: -40 ~ 65℃, relative humidity: ≤95% (non-condensing);
- Supply voltage: AC 85V ~ 265V or DC 100V ~ 360V;
- Installation mode: Open plate (vertical) :
Dimensions: width 48mm× height 96mm× depth 110mm;
Opening size: width (45+0.5mm) x height (92+0.5mm).
