Description

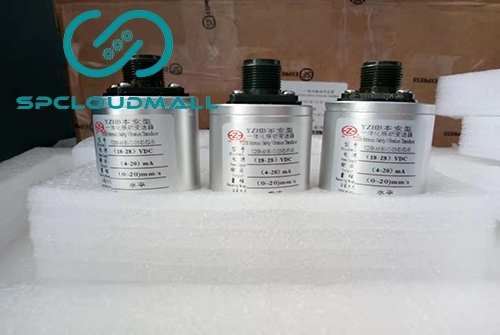

1.YZHB intrinsic safety Vibration Transducer
model: YZHB-A5-B1-C1-D5-E1-F2-G1
Installation way :Horizontal Installation
power supply :two -wire current circuit :the positive and negative of (+10~30)VDC
Measure range:Velocity (0~20.0)mm/s
The linear error of amplitude :±1%
Load:two -wire system :RL=50x(Vs-10)Ω current output:(4~20)mA
Frequency response:Velocity (10~2000)Hz Working temperature :-30~+70°c
Manufacture :JIANGYIN ZHONGHE ELECTRICAL POWER INSTRUMENT CO.,LTD
2.YZHB intrinsic safety Vibration Transducer
model: YZHB-A5-B1-C1-D5-E1-F1-G1
Installation way :Vertical Installation
power supply :two -wire current circuit :the positive and negative of (+10~30)VDC
Measure range:Velocity (0~20.0)mm/s
The linear error of amplitude :±1%
Load:two -wire system :RL=50x(Vs-10)Ω current output:(4~20)mA
Frequency response:Velocity (10~2000)Hz Working temperature :-30~+70°c
Manufacture :JIANGYIN ZHONGHE ELECTRICAL POWER INSTRUMENT CO.,LTD
