1. The instrument adopts advanced high-performance embedded chip, digital processing technology, the whole circuit has no adjustable components, and the set parameters are solidified in the digital form inside the chip, which is permanently saved and not lost; And can save 10,000 alarm history records, improve the measuring accuracy and data reliability of the instrument.
2. The probe position of the instrument can be corrected by software, according to the screen display gap voltage and other parameters, set the probe positive and negative installation direction, zero correction, simplifying the installation operation procedure.
-3. The instrument can deal with all kinds of faults in a timely manner, with power on, power off detection function, and has a variety of sensor status detection function, in the case of abnormal work, such as the instrument can send an alarm and lock the output to avoid false alarm action.
In order to adapt to different voltages in different countries, the instrument is designed with wide voltage input, and the power supply voltage range can work stably in AC85V ~ 265V or DC100V ~ 360V.
5. The instrument not only has a conventional alarm danger switching signal output, current signal output, but also has RS485 network communication interface, supporting Modbus RTU communication mode.
6.The instrument adopts 4.3 inch TFT true color LCD touch screen display, designed with Chinese and English operation interface, touch operation, display and easy operation.

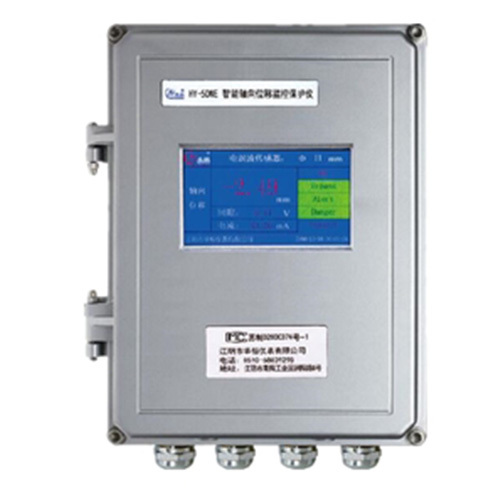

7. The instrument adopts aluminum alloy waterproof case, protection class IP56, dustproof and waterproof, suitable for harsh working environment.
-1. Display mode: 4.3 "TFT full color LCD display
Measuring range: ES-08 8mm eddy current sensor: 2.00mm
ES-11 11mm eddy current sensor: 4.00mm
ES-18 18mm eddy current sensor: 8.00mm
ES-25 25mm eddy current sensor: 10.0mm
- Linear error ≤ 1%FS (full scale) 3. Measurement accuracy: 0.5 level
Output mode: Current output: 4 ~ 20mA (load ≤ 1KΩ)
RS485 communication output: M0dbus RTU communication protocol
Two-stage switching output: DC30V/5A or AC250V/5A
-5. Installation thread: φ8mm eddy current sensor M10×1.0mm
φ11mm eddy current sensor M14×1.5mm
φ18mm eddy current sensor M25×1.5mm
φ25mm eddy current sensor M30×2.0mm
Operating environment: -40 ~ 65℃ Relative humidity: ≤ 95%
Power supply voltage: AC 85V ~ 265V or DC 120V ~ 375V
