User Manual of Houde Instruments

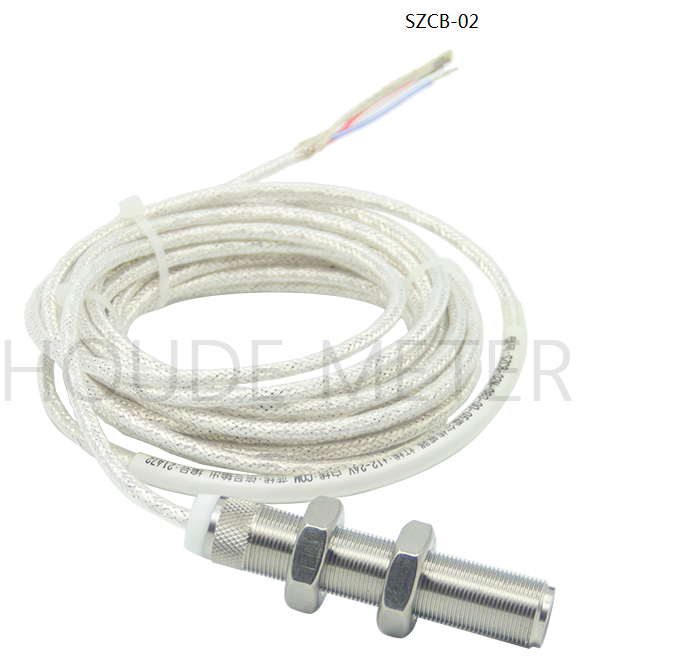

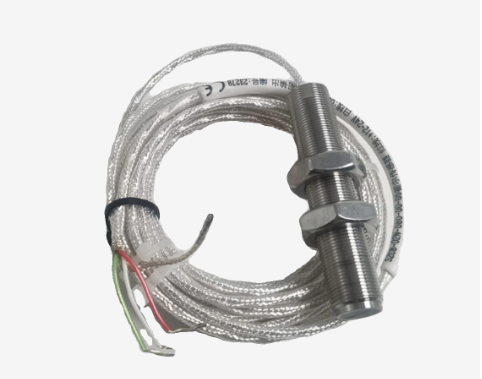

SZCB-02 Hall sensor
Manufacturer：Wuxi Houde Automation Meter Co.,Ltd
Overview
By adopting the Hall effect, rare earth magnets inside the sensor establish an initial magnetic field for the Hall device. When the ferromagnetic teeth pass in front of the Hall device, it causes a change in this magnetic field. The Hall device detects this change and converts it into an alternating signal. The built-in circuit of the sensor amplifies and shapes this signal, and outputs a good rectangular pulse signal, with a wider measurement frequency range The output is more precise and stable, and it has been widely applied in speed measurement fields such as industry, automobiles, and aviation.
