TM362X/TM364X Integrated vibration (Displacement) Transimtter

TM362X/TM364X integrated vibration (di splacement)transmitter
Manufacturer :Hunan Taiwei Dashi Technology Co., Ltd.

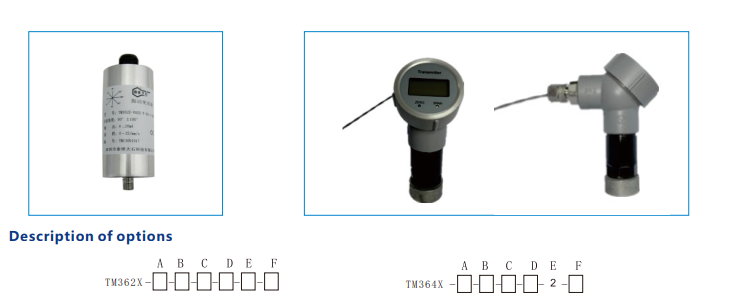

    TM362X/TM364X integrated vibration (di splacement)transmitter is the inertialThe sensor and precision measurement circuit are integratedtogether to obtain and set turndown ratiosuch as current or voltage signals. Can be directly connectedto DCS, PLC or other systems.The sensor/transmitter has good low-frequency outputcharacteristics, and is anti-vibration,Vibration of large hydro-generator sets and low-speedrotating machinery (such as coal mills)monitoring, as well as seismic monitoring, geologicalexploration, structural vibration analysis; bridgesVibration testing of beams, dams and roadbeds, etc.Integrated vibration (displacement) transmitterTM362X two-wire air plug outlet, terminal outlet, explosion-proof typeTM364X two-wire system with display window direct outlet
   Technical SpecificationsUnless otherwise specified, all parameters are determined at +25℃±5℃. Note: Operation outside the specification will result in incorrect data or loss of monitoring
Electrical CharacteristicsPower supply: two-wire system: two-wire power supply, 15-30VDCThree-wire system: 15-30VDCFrequency response: 3〜1000Hz, 10〜1000HzCurrent output: 4-20mAMaximum measurable range: related to the sensitivity, the greater the sensitivity, the greater theThe smaller the range, the smaller the sensitivity and the larger the rangeLinearity: <3%Lateral sensitivity: <5%Maximum measurable displacement: ±1000um (peak-to-peak) low frequency end (according toSensitivity varies in different ranges)Shock resistance: can withstand acceleration up to 50g peakOutput resistance: 200ΩInsulation resistance: >20MΩGround: floating outputElectromagnetic Compatibility: Compliant with CE StandardOutgoing method: outgoing from the top of the connector or out of the terminal.Length of lead wire: The longest connection from the sensor to the monitor is 300 meters. transmitThe longest connection between the device and the system is 800 meters. length increase time frequencyrate attenuates, refer to the user manual.

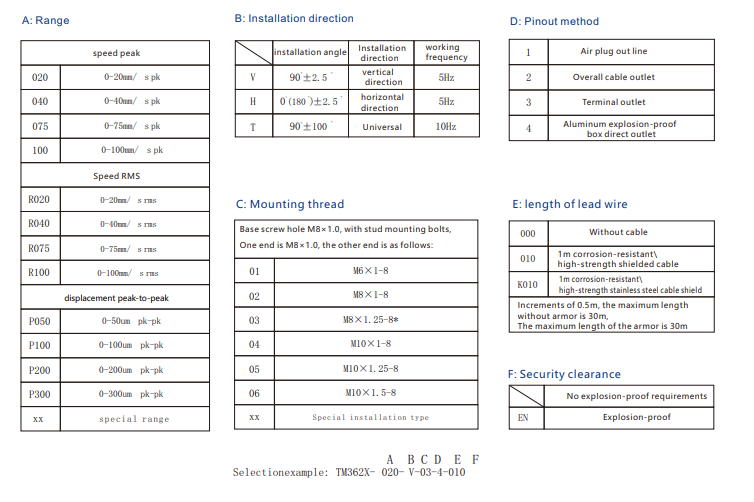

Ordering Information (Standard Configuration)The sensor can be used with the monitoring instrument and needs to be ordered separately (refer to the data of the monitor and the monitor)
