T M 3 6 2 X / T M 3 6 4 X i n t e g r a t e d v i b r a t i o n ( d i s p l a c e m e n t )
transmitter is the inertial
The sensor and precision measurement circuit are integrated
together to obtain and set turndown ratio
such as current or voltage signals. Can be directly connected
to DCS, PLC or other systems.
The sensor/transmitter has good low-frequency output
characteristics, and is anti-vibration,
Vibration of large hydro-generator sets and low-speed
rotating machinery (such as coal mills)
monitoring, as well as seismic monitoring, geological
exploration, structural vibration analysis; bridges
Vibration testing of beams, dams and roadbeds, etc.

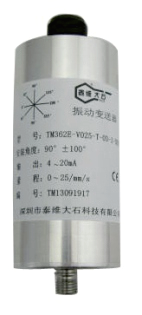

Integrated vibration (displacement) transmitter
TM362X two-wire air plug outlet, terminal outlet, explosion-proof type
TM364X two-wire system with display window direct outlet
Electrical Characteristics
Power supply: two-wire system: two-wire power supply, 15-30VDC
Three-wire system: 15-30VDC
Frequency response: 3〜1000Hz, 10〜1000Hz
Current output: 4-20mA
Maximum measurable range: related to the sensitivity, the greater the sensitivity, the greater the
The smaller the range, the smaller the sensitivity and the larger the range
Linearity: <3%
Lateral sensitivity: <5%
Maximum measurable displacement: ±1000um (peak-to-peak) low frequency end (according toSensitivity varies in different ranges)
Shock resistance: can withstand acceleration up to 50g peak
Output resistance: 200Ω
Insulation resistance: >20MΩ
Ground: floating output
Electromagnetic Compatibility: Compliant with CE Standard
Outgoing method: outgoing from the top of the connector or out of the terminal
Length of lead wire: The longest connection from the sensor to the monitor is 300 meters. transmit
The longest connection between the device and the system is 800 meters. length increase time frequency
rate attenuates, refer to the user manual.
Environmental restrictions
Working and storage temperature: -35℃〜+80℃
Relative humidity: 95% non-condensing
Mechanical properties
Shell material: 7075 aviation aluminum (surface anodized)
Height: 102mm
Diameter: φ50mm
Weight: <400g
Ordering Information (Standard Configuration)
The sensor can be used with the monitoring instrument and needs to be ordered separately (refer to the data of the monitor and the monitor)
